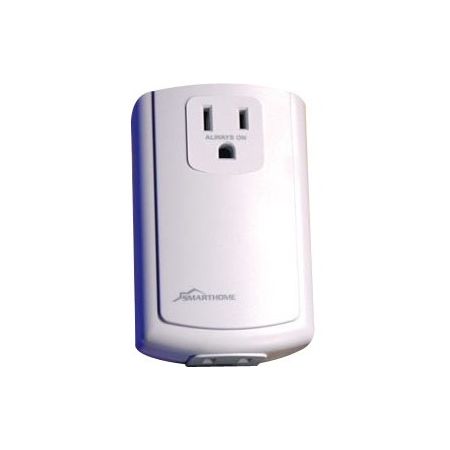

Insteon FilterLinc 10-Amp Plug-In Noise Filter Unit Item # 890273
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
890273
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
If your INSTEON system consists of a desktop timer and a couple of modules, chances are you won't encounter signal-strength problems. But if you're using several INSTEON switches, modules, and controllers throughout the house and want to assure maximum reliability, you'll need to supplement your system with the FilterLinc 10-Amp Plug-In Noise Filter. The dual-function 10-amp plug-in noise filter not only block unwanted interference on the power line, it also prevents other devices from attenuating your signals-resulting in a virtually problem-free INSTEON system.
The FilterLinc 10-Amp Plug-In Noise Filter blocks interference from many household appliances and fixtures, preventing it from polluting the power line. The 10-amp plug-in noise filter also prevents INSTEON signal absorption that occurs when equipment misreads the signals as noise. A feed-through outlet is a new feature built into the 10-amp plug-in noise filter, preventing you from having to unplug the filter anytime you're looking for an available plug. For added convenience, the 10-amp plug-in noise filter is fully compatible with FM intercoms and Home PNA devices.
Eliminates Electrical Noise from the Power Line
One of the most common (and easily correctable) problems that may adversely affect INSTEON signals is electrical "noise," or interference. The more interference there is on the power line, the more difficult it is for INSTEON receivers to detect signals from controllers. It's like trying to have a conversation in a room when the music is playing too loud. But the FilterLinc 10-Amp Plug-In Noise Filter blocks that interference, preventing it from polluting the power line. Common sources of interference include refrigerators, freezers, plug-in fluorescent fixtures, aquarium filters, fountains, low-voltage lighting, fans, or anything with a motor.
Prevents INSTEON Signal Absorption
Another common, yet easily correctable, problem affecting INSTEON signals is signal attenuation, or absorption. Because some devices are built with power supplies that kill noise on the AC line-and they often mistake INSTEON signals for noise-these devices may absorb INSTEON signals before their arrival at the receiving module. But the 10-amp plug-In noise filter eliminates those obstacles by blocking INSTEON signals from getting to them in the first place. The most common sources of signal attenuation include computers and audio/video equipment, particularly big-screen TVs.
Feed-Through Outlet for Added Convenience
The 10-amp plug-in noise filter also offers several new features that have never been available on plug-in noise filters, like a feed-through outlet that prevents you from having to unplug the filter anytime you're looking for an available plug. Plus, the plug-in noise filter's high 49.4dB attenuation at 120kHz provides maximum protection at the INSTEON 120kHz frequency. The 10-amp plug-in noise filter is fully compatible with FM intercoms and Home PNA devices. The noise filter is also safety tested and approved to ensure the highest degree of protection.
Tech Tip: A quick way to test if an electrical device is adding interference on the power line or absorbing INSTEON signals is to unplug the device and re-transmit the signal.
Where to Install FilterLinc Noise Filters
Many electrical devices in your home may cause interference with your INSTEON. These devices will either inject electrical noise onto your home's electrical wires or they may absorb or trap the power line communications signals.
Product Details
| Item # | 890273 |
| Manufacturer # | 4129682 |
| Application/Usage | Home |
| weight | 9.59 oz |
| brand name | Insteon |
| height | 4.3 in. |
| Additional Information | Plug-In Wall Outlet: 120-volt, 3-prong; Attenuation: 49.2dB @ 120kHz |
| Product Line | FilterLinc |
| width | 2.5 in. |
| package contents | FilterLinc 10-Amp Plug-In Noise Filter Unit; User manual |
| depth | 1.5 in. |
| Product Name | FilterLinc 10-Amp Plug-In Noise Filter Unit |
| color | white |
| manufacturer | SmartLabs, Inc |
| warranty length | 2-year limited |
